RG6 200 Meters Coaxial Cable, Astel
KSh5,500.00
Description

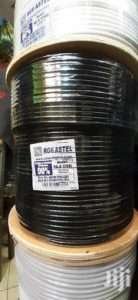

Astel RG6 200 Meters Coaxial Cable Mtech
The RG6 200 Meters Coaxial Cable from Astel is a high-quality, long-length coaxial cable designed to deliver reliable and stable signal transmission for various applications. This cable is ideal for use in television distribution, satellite TV systems, and broadband internet connections, offering robust performance and durability.
Key Features:
High-Performance Transmission: The RG6 coaxial cable is engineered to support high-frequency signals, making it suitable for applications requiring stable and clear signal delivery. With an impedance of 75 ohms and a bandwidth suitable for up to 3 GHz, it provides minimal signal loss and interference over long distances.
Durable Construction: The cable features a high-quality copper or copper-clad steel conductor that ensures efficient signal transmission. The dielectric insulation is made of foam polyethylene (PE), which contributes to the cable’s overall performance.
Enhanced Shielding: To protect against electromagnetic interference (EMI) and signal degradation, the RG6 cable includes a primary shield of aluminum foil or aluminum/polyester foil and a secondary shield of tinned copper or aluminum braid. This multi-layer shielding helps maintain signal integrity and reduces noise.
Weather-Resistant Jacket: The cable is encased in a robust PVC or PE jacket that provides protection against environmental factors, making it suitable for both indoor and outdoor installations. The jacket is designed to withstand temperature variations from -20°C to +60°C and remains flexible even in harsh conditions.
Long Length: With a length of 200 meters, this coaxial cable is well-suited for extensive installations, reducing the need for multiple connectors and joints, which can potentially degrade signal quality.
Versatile Applications: The RG6 cable is versatile and can be used in a variety of settings, including residential, commercial, and industrial environments. It is ideal for connecting cable television systems, satellite dishes, and broadband modems.
Astel RG6 200 Meters Coaxial Cable is suitable for reception and distribution of all kinds of Digital and Analog Satellite Signals i.e. DVB-S/S2, DVB-T/T2, QPSK, QAM, COFDM etc. ASTEL RG-6 CCS Series is SD/HD/FHD READY .
ASTEL RG-6 CCS Series have been designed for high shielding efficiency and low attenuation. RG6 200 Meters Coaxial Cable are designed and manufactured to meet the increasing demands of Satellite (SMATV), Cable TV (CATV), and Antenna Reception (MATV) applications.
Astel RG6 200 Meters Coaxial Cable specifications
Model Product
RG-6 70AL
RG-6 90AL
CS697BV
Inner Conductor
CCS
CCS
CCS
Dielectric
Foam PE
Foam PE
Foam PE
1st Shield
Bonded AP Foil
Bonded AP Foil
Bonded AP Foil
2nd Shield
AL-MG Braiding
AL-MG Braiding
AL-MG Braiding
Braid Coverage
70% Coverage
95% Coverage
97% Coverage
3rd Shielding
NA
NA
NA
4th Shielding
NA
NA
NA
Jacket
PVC
PVC
PVC
ROHS Compliance
NA
NA
NA
Construction
Center Conductor Diameter
1.02 mm
1.02 mm
1.02 mm
Foam PE
4.80 mm
4.57 mm
4.57 mm
1st Shield
4.95 mm
4.73 mm
4.73 mm
2nd Shield
5.30 mm
5.32 mm
5.32 mm
3rd Shield
NA
NA
NA
4th Shielding
NA
NA
NA
Jacket Material
PVC
PVC
PVC
Jacket
6.85 mm
6.91 mm
6.91 mm
Jelly (For Corrosion Protection)
NO
NO
NO
Electric Specifications
Nominal DCR @ 20 deg C
Inner Conductor
117 ohms/KM
102 ohms/KM
102 ohms/KM
Outer Conductor
62 ohms/KM
27 ohms/KM
26 ohms/KM
Nominal Capacitance
53.0 pf
53.0 pf
53.0 pf
Impedance
75±3 ohms
75±3 ohms
75±3 ohms
Return Loss
?18 dB
?20 dB
?22 dB
Propagation Velocity Ratio
82%
82%
82%
Insulation Resistance
?2000M?
?2000M?
?2000M?
Packing
100Y CTN Size QTY-6 pcs/CTN
28x28x58 cms
28x28x58 cms
28x28x58 cms
