SAT 48dB Minikom Central Amplifier with UHF/VHF Mix
SAT Multiband Amplifier MiniKom with UHF/VHF Mix Televes 5363
With this amplifier central you can introduce a satellite signal into an existing DTT installation. That is, in neighborhood communities where there is already a DTT central, this central and a parabolic antenna are added and a satellite signal can be added to the installation, using the existing wiring.

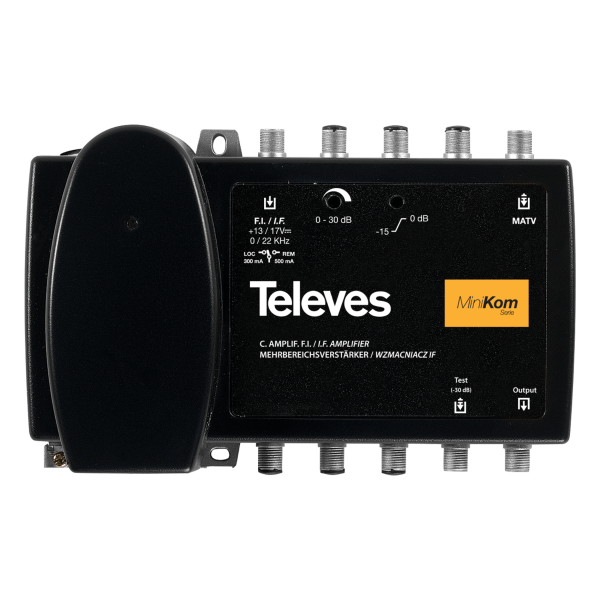

The MiniKom 5363 line amplifier has 2 inputs (VHF/UHF-FI) and 1 output. It amplifies the satellite band (IF) and mixes it with the terrestrial one (VHF/UHF). Offers 48dB of gain for satellite and up to 122dB**V of output. In terrestrial it has only -1.5dB of pass loss. Selection of the LNB power supply in local or remote mode, by means of a switch. In local mode, the band/polarity will be configured through another 2 switches.
For example, it is very common to use it for Astra 19.2**E, where Movistar+ is located, and to configure it with local power supply in 12Vc, and 0Khz tone, so that the LNB is fixed in the low vertical polarity and being thus distributed the signal of Movistar+ in the whole community. This amplifier is compatible with any satellite.
**
Line Amplifier MiniKom to amplify the SAT band and mix with VHF/UHF
What technical specifications does the Televes 5363 Satellite Amplifier have?
Frequency margin MHz 950… 2150 47… 862
Gain dB 39… 48 – 1.5
Max.output level DIN VDE
0855/12 dB?V > 122 –
Gain adjustment range dB 0…30 –
Equalizer dB 0…15
Vlnb LOC mA 300
REM 500
Vpp Vpp 0,6 ? 0,1
Mains voltage (5363 / 536310) V~ 196 – 254 / 108 – 132
Total AC consumption (5363 / 536310) mA~ max. 130 / 200
W 13,5 / 14
Protection Level IP 20
Temperature operat. limits ?C -5 … +45
?
