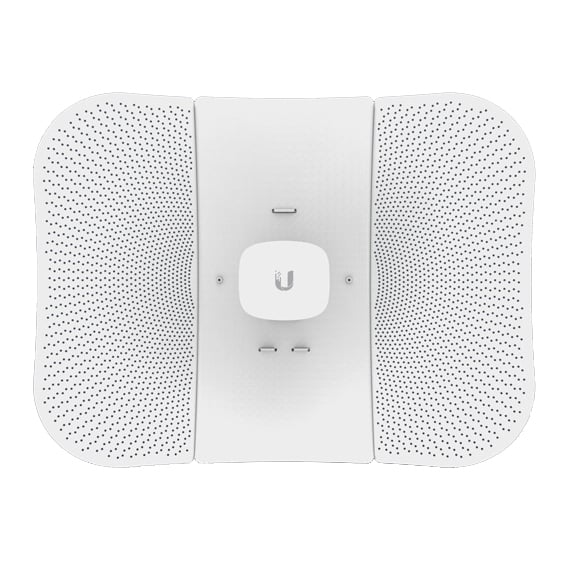

Ubiquiti Networks LiteBeam AC Network Bridge 450 Mbit/s White (LBE-5AC-GEN2)

Name: Ubiquiti Networks LiteBeam AC Network Bridge 450 Mbit/s White (LBE-5AC-GEN2) | +254720548999
SKU: LBE-5AC-Gen2

Ubiquiti
Networks LiteBeam AC Network Bridge 450 Mbit/s White
EVOLVE 75

Ubiquiti Networks launches the latest generation of airMAX® CPE (Customer
Premises Equipment), the LiteBeam® 5AC Gen 2, with dedicated Wi-Fi
management.

The LiteBeam® AC is an ultra-lightweight airMAX ac CPE device with
incredible range and disruptive pricing.

This airMAX ac CPE features adjustment flexibility in three axes for
versatile mounting options.

Improved Noise Immunity

The LiteBeam 5AC Gen 2 directs RF energy in a tighter beamwidth. With the
focus in one direction, the LiteBeam 5AC Gen 2 blocks or spatially filters
out noise, so noise immunity is improved. This feature is especially important
in an area crowded with other RF signals of the same or similar
frequency.

Innovative Design

Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of
an antenna, so there is no need for a cable. This improves performance
because it eliminates cable losses. Featuring high performance and innovative
mechanical design, the LiteBeam 5AC Gen 2 is versatile and cost-effective to
deploy.

Powerful Wireless Features
Access Point PtMP airMAX Mixed Mode
airMAX ac Protocol Support
Long-Range Point-to-Point (PtP) Link Mode
Selectable Channel Width
PtP: 10/20/30/40/50/60/80 MHz
PtMP: 10/20/30/40 MHz
Automatic Channel Selection
Transmit Power Control: Automatic/Manual
Automatic Distance Selection (ACK Timing)
Strongest WPA2 Security
Usability Enhancements
airMagic® Channel Selection Tool
Redesigned User Interface
Dynamic Configuration Changes
Instant Input Validation
HTML5 Technology
Optimization for Mobile Devices
Detailed Device Statistics
Comprehensive Array of Diagnostic Tools, including RF Diagnostics and
airView® Spectrum Analyzer
Additional Product Notes
Management Wi-Fi Radio
The LiteBeam® AC integrates a separate Wi-Fi radio for fast and easy setup
using your mobile device.
Improved Mounting and Surge Protection
Featuring enhanced protection against ESD events, the LiteBeam® AC offers a
more robust mount with separate azimuth and elevation adjustments.
Now with airOS®8 and airView®
airOS®8 provides powerful features, including airMAX ac protocol support,
real-time RF analytics, and an all-new design for enhanced usability.
High-Gain, Directional, 2×2 MIMO Antenna
The LiteBeam® AC LR provides 26 dBi of gain for long-distance connectivity
and uses a directional antenna pattern for improved noise immunity.
Breakthrough Industrial Design
Featuring the freedom of three-axis alignment, the LiteBeam® AC fully
assembles in seconds – no tools needed. Only a single wrench is required for
pole-mounting.
Compact in Size, Light in Weight
A lightweight form factor contained within ultra-compact packaging, the
LiteBeam® AC is ideal for shipping and logistics.
LBE-M5-23 LBE-5AC-23 LBE-5AC-Gen2 LBE-5AC-LR
Throughput 100+ Mbps 450+ Mbps 450+ Mbps 450+ Mbps
Management Radio – –
Gain 23 dBi 23 dBi 23 dBi 26 dBi
