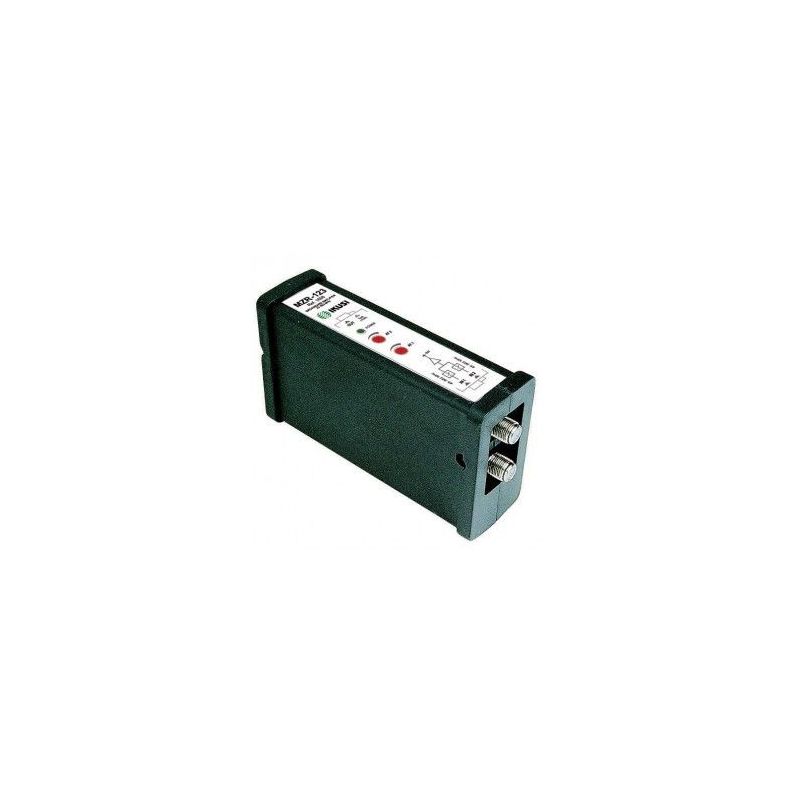

Ikusi Amplifier all band 36dB 123dBuV MZR-123 1608
KSh11,832.00
RF power amplifier. 45-862 MHz. 2 inputs.
Specifications
Model MZR-123
Function 1608
Number od RFinputs two
2
45-862 MHz
Gain
dB (2x) 38
Attenuated dB input variable dB (2x) 0 – 25
Output level dB**V 123
Output test dB -30 **1
Consumption of**+24V mA 200
Dimensions mm 140 x 53 x 73
Related products
-
Add to cartConfigurable UHF single-channel amplifier SZB+550
Features
Simple and manual configuration, by the installer.
A single stock reference for the entire UHF band (C21 … 48).
Compatible with existing headers, same format, same power.
Automatic control of gain / stability of the output level.
Adjustable filter from single-channel to four-channel.
Greater dynamic input range (allows to work with weaker signals).
Low level of noise figure.
Mounting without tools on wall mounting brackets.
Specifications
Model** SZB+550
Reference** 2260
TV system AM-TV / DVB-T
Connection F female
Covered band **MHZ 470 – 694********
Filter bandwidthChannel
MHz
1
8**
2
16**
**3
24
4
32
Entry level dB**V 40 – 90
Automatic Gain Control dB 50**
Output level regulation dB 30**
Typical output level (IMD3 -35 dB) dB**V 121**
Selectivity at the end of the channel ** 1 MHz dB 26**
Loss return output Z dB > 10**
Step losses at the Z output dB 0.5**
Feeding VDC +24**
Typical consumption mA 250**
Operating temperature **C 0 …. + 45** -
Add to cartDigital Radio Amplifier Gain 53dB, Output level 2x113dB**V
Additional info
Data Sheet
Installation Manual
-
Add to cartStock available in channels C22, C27, C28, C32, C35, C38, C39, C42 and C45.
Single channel UHF amplifier, 52dB Gain, Output Level 2x121dB**V
Main features
TV single-channel and multichannel amplifiers, the last ones especially created for amplification of combined analog and digital channels. Z input de-multiplexing and Z output multiplexing. Adjacent channel operation allowed in UHF band.
It is advisable to place the amplifiers on the base-plate following an increasing order of number of channel (frequency).
The RF output of the headend will be taken from the last one of the modules ordered in this way.
Additional infoData Sheet
Installation Manual
-
Add to cartIKUSI BAS-915. Base plate with power connecting bar. Capacity: 1 power supply+4 RF modules SZB; or 5 RF modules
Features
Support base with power bar. Capacity: 1 feeder + 4 RF modules; or 5 RF modules. -
Add to cartAmplifier / Combiner SAT-IF, Gain 33-40dB, Output Level 120dB**V
Main features
Preferential use with the SZB, MZB and MZ6 terrestrial single-channel processing headends. Mounting as any other module.
1 satellite input 950-2150 MHz with adjustable gain and sloped response to compensate for cable loss; 1 terrestrial coupling input 5-862 MHz; 1 satellite+terrestrial output.
Automatic power connection, either via contact terminal (SZB application) or via terrestrial coupling input port (MZB applications).
LNB coax line powering. The SZB-190 generates the required voltage/tone signals for the selection of H/V polarisation and high/low frequency sub-band.
Programmable values by micro-switches.
Additional infoData Sheet
Installation Manual
