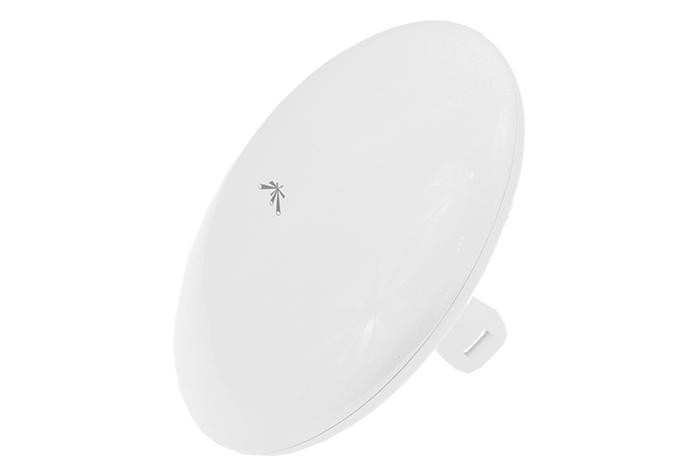

Ubiquiti NBE-M5-19 Networks NanoBeam M5 network antenna 19 dBi

NBE-M5-19
– Ubiquiti reliable solution
The NBE-M5-19 device is an efficient and reliable set from Ubiquiti. The
device works in the 5 GHz band.

The Ubiquiti NBE-M5-19 complements the NanoBeam M series. The device uses
the 802.11n standard which allows for 150 Mbps bandwidth.

Work

The NBE-M5-19 can work in Router and Bridge modes. The Wi-Fi interface
supports Access Point, Access Point WDS, Client and Client WDS modes. This
product is equipped with a 560 MHz Atheros MIPS 74KC processor.

Antenna

The NBE-M5-19 device is equipped with a 19 dBi maximum gain antenna.

Construction

The Ubiquiti NBE-M5-19 device is compact in size and easy to install. Its
durable components allow for use at temperatures ranging from -40 to 70
degrees Celsius.

Use

The Ubiquiti NBE-M5-19 device can be used to create efficient, wireless
bridges and as a customer set used over long distances from the base
station.

Installation

The installation of the NanoBeam M device is quick and effortless. The use
of a round handle allows for appropriate setting up of the device.

Key features
works in the 5 GHz band
150+ Mbps bandwidth
15 km range
19 dBi antenna power gain
durable construction

Comparison

NBE-M2-13

NBE-M5-16

NBE-M5-19

NBE-5AC-19

FREQUENCY

2.4 GHz  5 GHz   5 GHz 5 GHz

THROUGHPUT

 150+ Mbps  150+ Mbps  150+ Mbps 450+ Mbps

RANGE

15+ km   10+ km  15+ km   15+ km

GAIN

13 dBi 16 dBi 19 dBi 19 dBi

DIMENSIONS

189 x 189 x 125 mm 140 x 140 x 54 mm 189 x 189 x 125 mm 189 x 189 x 125
mm
