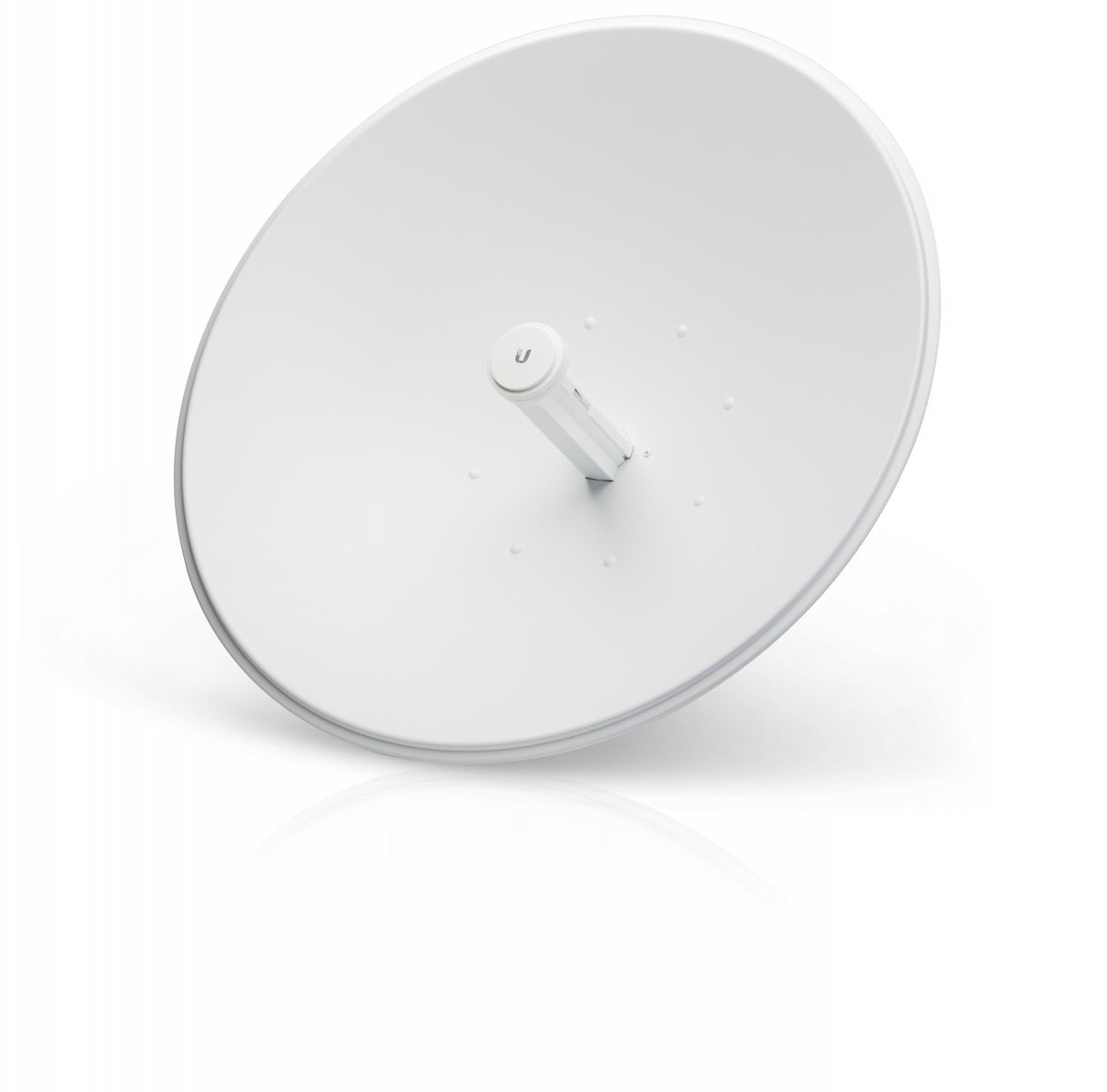

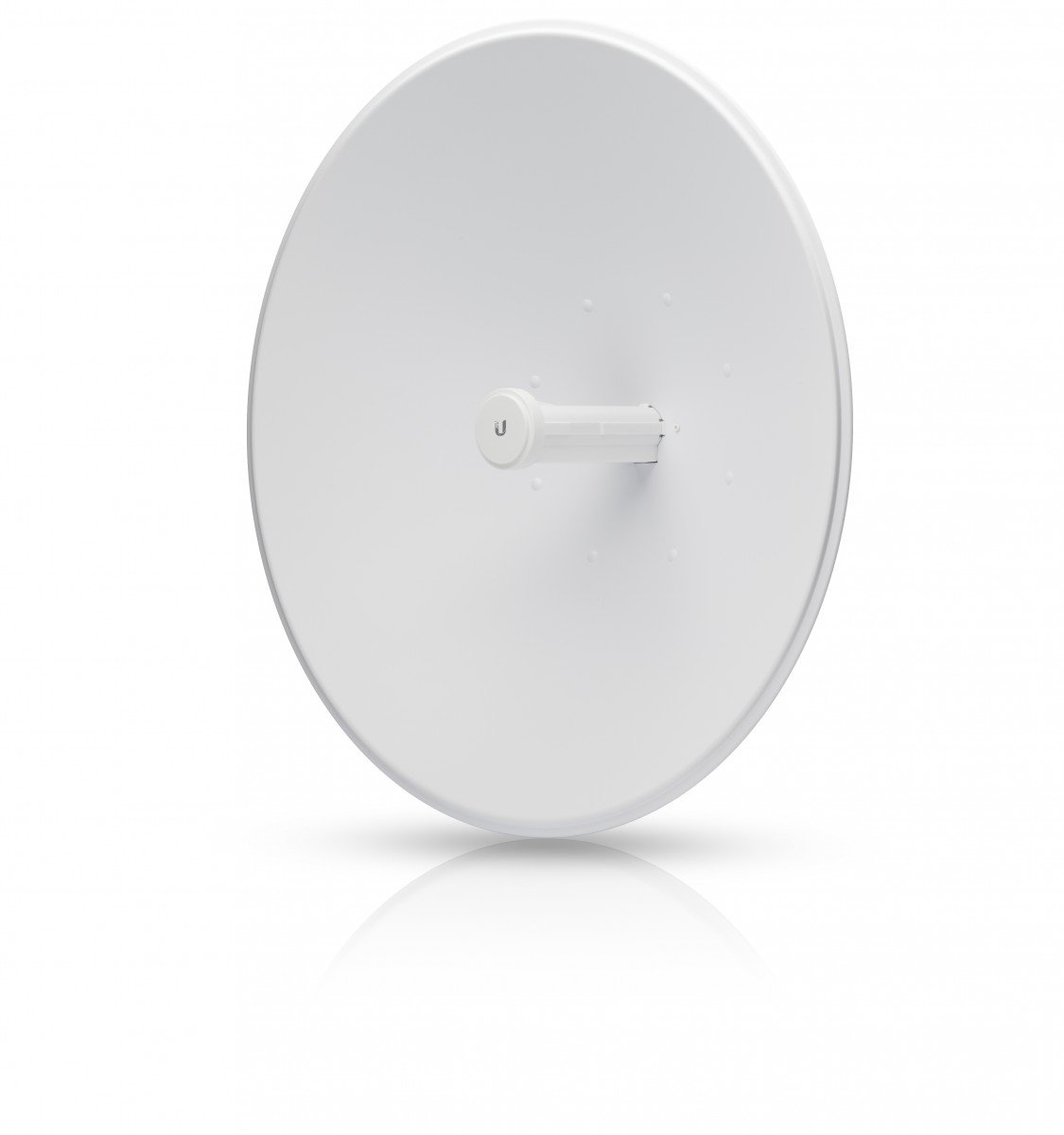

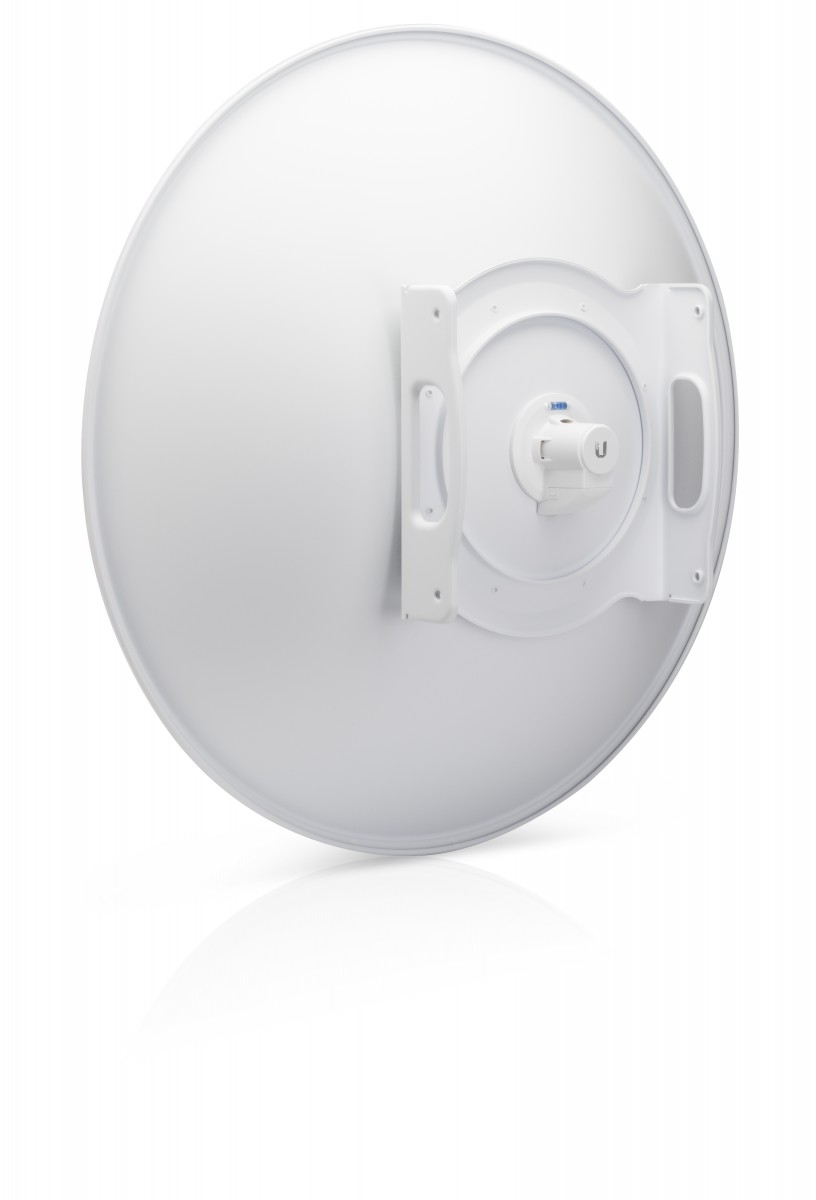

Ubiquiti Networks PBE-M5-620 network antenna Sector antenna 29 dBi

PBE-M5-620
– reliable Ubiquiti solution
The PBE-M5-620 is an efficient radio system based on innovative solutions.
It uses the InnerFeed and AirMax technologies.

The Ubiquiti PBE-M5-620 radio system is characterised by the 802.11n MIMO
2×2 standard. It works in the 5 GHz band with 150 Mbps bandwidth.

Construction

The device’s size is compact. Because of its highly durable components it
can be used at temperatures ranging from -40 to 70 degrees Celsius and
relative humidity of up to 95%. An elegant casing easily blends with the
environment.

Antenna

The device is equipped with a 29 dBi maximum gain antenna and the use of
InnerFeed technology.

Work

PBE-M5-620 is equipped with a 560 MHz Atheros MIPS 74KC processor. The
device uses 64 MB internal memory and 8 MB flash drive memory. The use of
AirMax technology results in increased efficiency and interference
reduction.

Key features
works in the 5 GHz band
150+ Mbps bandwidth
30+ km range
29 dBi gain
solid construction
Dual-Linear polarisation

Installation

The installation of the product is intuitive which saves the customer’s
time. Ease of installation results in a fast and effortless process.

Comparison

PBE-M5-620

PBE-M5-400

PBE-M5-300

PBE-M2-400

Frequency Band 5 GHz 5 GHz 5 GHz 2.4 GHz
Antenna Gain 29 dBi 25 dBi 22 dBi 18 dBi
Dish Reflector 620 mm 400 mm 300 mm 400 mm
Network Interface 10/100/1000 10/100/1000 10/100 10/100
Throughput 150+ Mbps 150+ Mbps 150+ Mbps 150+ Mbps
Range 30+ km 25+ km 20+ km 20+ km

Manufacturer’s content

 Read more in the manufacturer’s documentation

 Read the manual

Specifications
