Category: TV Distribution
TV Distribution
Showing 1–60 of 1174 results
-
Add to cartDomestic amplifier with 6 outputs, to extend the terrestrial television domestic network.
Equipped with LTE700 4G/5G filtering.
Highlights
Low-impact visual design and limited size
Integrated high-performance switched-mode power supply (40% less than a standard amplifier )
Fully automated manufacturing subject to the most stringent quality controls
Features
Manual gain control, protected by a folding cover
Can be wall-mounted using screws
?F? connectors
Specifications
VHF/UHF
Frequency band MHz 47-68/174-400 470-694
Inputs 6 (F) 6 (F)
Gain G dB 6 14
Gain regulation margin marg – AUTO
Output level (Vout) DIN 45004B? dB?V 104 102
IMD3(2tones, -35dB) 97 95
10CH DVB-T – 83
Noise figure N.F. dB – 0 … 12 -
Add to cartDomestic amplifier with 5 outputs (4+TV) to extend the terrestrial television domestic network. The TV output provides a lower gain for direct connection to the television set (no outlet installation). Equipped with LTE700/5G filtering.
-

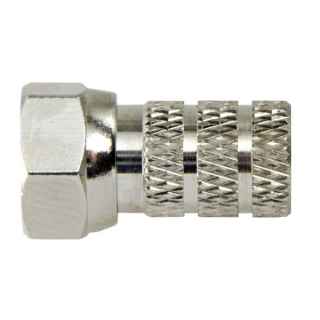

Add to cartF connector with threaded mounting system. Supplied in a professional plastic box of 50 units.
-
10 dB attenuator FC/PC Televes
KSh5,536.00Add to cartAre used to adjust the optical input levels, the dynamic range to pose optical receivers.
-
Read moreThe ideal professional kit for Fibre
installations. Complete 12 piece kit in durable carry case.Product code: FIBRE-TOOLKIT
-
Read more
The ideal professional kit for Fibre
installations. Complete 12 piece kit in durable carry case.Product code: FIBRE-TOOLKIT
-
12x Gb Ethernet Router + Service Configuration 19″ Rack…
KSh988,570.00Add to cartConfiguration service + Router Device. GPON Infraestructures. Latest generation router and configuration service adapted to each network infraestructure on demand.
-
15 dB attenuator FC/PC Televes
KSh5,536.00Add to cartAre used to adjust the optical input levels, the dynamic range to pose optical receivers.
-
Read more25mm Galvanised Mounting Bracket for J-Bracket SKU: WBJB-B Category: Dish Mounts Tags: bracket, j mount, mount, wifi, wireless
-
Read more2M Ground Mount SKU: WB46 Categories: Dish Mounts, Dishes & Accessories, Satellite Tag: bracket ground mount
-

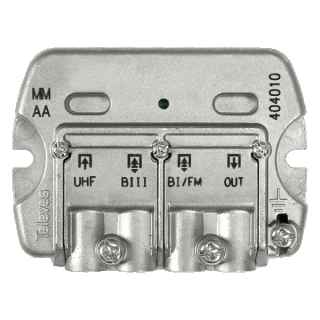

3 inputs VHF-UHF-UHF mixer Blister Televes
KSh4,568.00Add to cart3-input combiner for several terrestrial bands. Includes mast-mount case for outdoor installation.?Allows current pass from output to UHF input to power a mast amplifier or a BOSS system.?Orange colour.?Blister
-
-

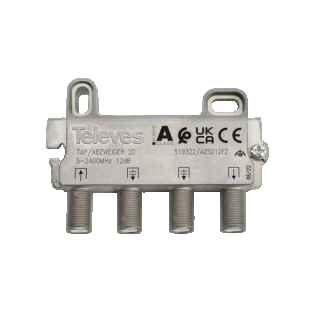

4-way splitter 5-2400MHz 9/7.5dB EasyF Televes
KSh4,600.00Add to cart4-way splitter and EasyF connection system, for SMATV signals, with a compact design and efficient electronic behavior. It is an indoor installation, but it is also suitable for outdoor use, always inside a televes-4177 box. Televes 432902
-
Add to cartBlister, includes box (televes-4177) for outdoor installation with 4-way distribution and EasyF connection system, for SMATV signals, with a compact design and efficient electronic behavior. Televes 434202
-
5 dB attenuator FC/PC Televes
KSh5,536.00Add to cartAre used to adjust the optical input levels, the dynamic range to pose optical receivers.
-
Read more24 way multiswitch. The SMK range of cascaded multiswitches have the benefit of being snapped together instead of havingto make up small coaxial leads with F connectors. The PA5082adaptors are used to do this. The last cascaded multiswitch through ports must be terminated with 75 ohm capacitive loads, so use product PR1007. SKU: SMK55243FA Categories: …
-
Read more8 way multiswtich. The SMK range of cascaded multiswitches have the benefit of being snapped together instead of havingto make up small coaxial leads with F connectors. The PA5082adaptors are used to do this. The last cascaded multiswitch through ports must be terminated with 75 ohm capacitive loads, so use product PR1007. SKU: SMK5583FA Categories: …
-
Add to cart3-way splitter with PAU and F connectors, for SMATV signals. It presents low through losses thanks to the miniaturization applied to the electronic components, which improves its electrical behavior. In addition, its chassis provides great armoring as it is made of Zamak.
-
Read moreCompatible with SpaceHD REC-DSD300-HD-S2
Receiver, and also works with DStv series 4, 5 and 6 decoders.Product code: PSU-DSD300
-
Read moreSuperJack III + Regular series actuator is low noise, high performance actuator for motorized satellite antenna system. With different stroke of 18, 24 and 36 inch, SuperJack REGULAR can be used to motorize satellite dishes sizing from 1.2M to 3.6M in diameter. Features • Superior anti-rust process: Epoxy powder coated steel tube and high grade …
-
Read moreSuperJack III + Regular series actuator is low noise, high performance actuator for motorized satellite antenna system. With different stroke of 18, 24 and 36 inch, SuperJack REGULAR can be used to motorize satellite dishes sizing from 1.2M to 3.6M in diameter. Features • Superior anti-rust process: Epoxy powder coated steel tube and high grade …
-
Adapter “F Quick” male – male (Box 50 units) Televes
KSh24,684.00Add to cartAdapter that allows the connection of two female F connectors together, usually with the purpose of connecting two products equipped with F connections. The Quick F range connector does not need to be screwed on.?Professional plastic box of 50 units. Televes 3821
-
Adapter 5/8″ Male – “F” Female Televes
KSh3,300.00 -
Adapter F Female – F Female (Box 50 units) Televes
KSh21,660.00Add to cartF female – female adapter. With narrow thread and length 27mm. Adapter that allows two male “F” connectors to be connected to each other, typically two coaxial extensions. Does not include nut or washer. Supplied in a professional plastic box of 50 units.
-
-
Adapter F female – F female Televes
KSh738.00Add to cartF adapter female – F female. It is usually used to join two coaxial cables that have type F connector and also extend coaxial cables. Televes 4307
-
Read moreAdapter Plate C/Ku Band holder SKU: ADP Categories: Dishes & Accessories, LNB Holders, Satellite
-
Add to cartAdapter SFP 10Gb Ethernet LC/PC 2 fibers that generates an interface to make OLT inputs and outputs compatible with different types of networks. Televes 769412
-
Add to cartAdapter?Gb Ethernet RJ45 that generates an interface to make OLT inputs and outputs compatible with different types of networks. Televes 769411
-
Add to cartAdapter Class B GPON + 1 SC/PC fiber that generates an interface to make OLT inputs and outputs compatible with different types of networks. Televes 769410
-
Add to cartAdapter Class C GPON + 1 SC/PC fiber that generates an interface to make OLT inputs and outputs compatible with different types of networks. Televes 769413
-
-
Alcad AI-100 Indoor amplifier 1+1 outputs
KSh8,512.00Add to cartAlcad AI-100 – Serie 904: Indoor amplifier 1+1 outputs.
Broadband apartment amplifier for terrestrial TV, with built-in power supply unit. It amplifies the VHF and UHF bands separately and has an independent gain control for each band. It includes two outputs to make the distribution to two or more televisions. The outputs are equal or unbalanced.
Applications
Designed to enlarge analogue and digital terrestrial TV installations within an apartment or house. It amplifies the TV signal so a distribution with several new outlets can be made from the signal of one TV outlet or from the coaxial cable entering the house. The levels are easily adjusted by means of the two gain controls.
Characteristics
Made from ABS plastic, with an internal zamak chassis which gives maximum shielding. The power supply unit is insulated from the rest of the high frequency circuit, complying with the safety regulations for the installer and the user. Fixed to the wall by means of the supplied screwsand wall-plugs. F type connectors.
Downloads
Technical specification
Technical specification
Manuals
– pdf 146.32 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Technical specifications
-
Alcad AI-133 Indoor amp 1 output catv rp 65 mhz
KSh10,358.00Add to cartAlcad AI-133 – Serie 904: Indoor amp 1 output catv rp 65 mhz.
Broadband apartment amplifier for terrestrial TV, with built-in power supply unit. It amplifies the VHF and UHF bands separately and has an independent gain control for each band. It includes two outputs to make the distribution to two or more televisions. The outputs are equal or unbalanced.
Applications
Designed to enlarge analogue and digital terrestrial TV installations within an apartment or house. It amplifies the TV signal so a distribution with several new outlets can be made from the signal of one TV outlet or from the coaxial cable entering the house. The levels are easily adjusted by means of the two gain controls.
Characteristics
Made from ABS plastic, with an internal zamak chassis which gives maximum shielding. The power supply unit is insulated from the rest of the high frequency circuit, complying with the safety regulations for the installer and the user. Fixed to the wall by means of the supplied screws and wall-plugs. F type connectors.
Downloads
Technical specification
Technical specification
Manuals
– pdf 202.61 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Technical specifications
-
Alcad AI-223 Indoor ampl 2 outputs catv (rp 65mhz)
KSh10,114.00Add to cartAlcad AI-223 – Serie 904: Indoor ampl 2 outputs catv (rp 65mhz).
Broadband apartment amplifier for terrestrial TV, with built-in power supply unit. It amplifies the VHF, UHF and interband bands continuously and includes a return path. It has a gain control and two outputs for the distribution to two or more televisions.
Applications
Designed to enlarge analogue and digital terrestrial TV installations within a house. Especially appropriate as an apartment amplifier in cable TV networks or in community installations where the interband bands are used. It amplifies the TV signal so a new distribution can be made from the signal of one TV outlet or from the coaxial cable entering the house.
Characteristics
Made from ABS plastic, with an internal zamak chassis which gives maximum shielding. The power supply unit is insulated from the rest of the high frequency circuit. Fixed to the wall by means of the supplied screws and wall-plugs. F type connectors.
Downloads
Technical specification
Technical specification
Manuals
– pdf 198.58 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Technical specifications
-
Alcad AI-240 Indoor amplifier 2 outputs lte800
KSh8,996.00Add to cartAlcad AI-240 – Serie 904: Indoor amplifier 2 outputs lte800.
Broadband apartment amplifier for terrestrial TV, with built-in power supply unit. It amplifies the VHF and UHF bands separately and has an independent gain control for each band. It incorporates a filter to reject the LTE800 band. It includes two symmetrical outputs to make the distribution to two or more televisions.
Applications
Designed to enlarge analogue and digital terrestrial TV installations within an apartment or house. It amplifies the TV signal so a distribution with several new outlets can be made from the signal of one TV outlet or from the coaxial cable entering the house. The levels are easily adjusted by means of the two gain controls. The amplifier prevents possible interferences generated by devices operating in the LTE800 band.
Characteristics
Made from ABS plastic, with an internal zamak chassis which gives maximum shielding. The power supply unit is insulated from the rest of the high frequency circuit, complying with the safety regulations for the installer and the user. Fixed to the wall by means of the supplied screws and wall-plugs. F type connectors.
Downloads
Technical specification
Technical specification
Manuals
– pdf 105.84 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Certificates
CE_Declaration-TV_Systems pdf 65.95 KB
Technical specifications
-
Alcad AI-271 Indoor amplifier 2 outputs lte700
KSh9,902.00Add to cartAlcad AI-271 – Serie 904: Indoor amplifier 2 outputs lte700.
Broadband apartment amplifier for terrestrial TV, LTE700 compatible, with built-in power supply unit. It amplifies the VHF and UHF bands separately and has an independent gain control for each band. It includes two outputs to make the distribution to two or more televisions.
Applications
Designed to enlarge analogue and digital terrestrial TV installations within an apartment or house. It amplifies the TV signal so a distribution with several new outlets can be made from the signal of one TV outlet or from the coaxial cable entering the house. The levels are easily adjusted by means of the two gain controls.
Characteristics
Fresh look, with a case made of ABS plastic for better impact resistance, with an internal zamak chassis which gives maximum shielding and extended range power supply. Easy wall fixing thanks to the supplied screwsand wall-plug or, alternatively, DIN rail installation by means of an adapter (not supplied). F type connectors.
Downloads
Technical specification
Technical specification
Manuals
AI-271 Manual pdf 788.59 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Certificates
CE Declaration – AI-271 pdf 149.8 KB
Flyers
AI-201 & AI-271 flyer pdf 1.09 MB
Technical specifications
-
Alcad AI-400 Indoor amplifier 4 outputs
KSh11,012.00Add to cartAlcad AI-400 – Serie 904: Indoor amplifier 4 outputs.
Broadband apartment amplifier for terrestrial TV, with built-in power supply unit. It amplifies the VHF and UHF bands separately and has an independent gain control for each band. It includes four outputs to make the distribution to 4 or more televisions. The outputs are equal or unbalanced.
Applications
Designed to enlarge analogue and digital terrestrial TV installations within an apartment or house. It amplifies the TV signal so a distribution with several new outlets can be made from the signal of one TV outlet or from the coaxial cable entering the house. The levels are easily adjusted by means of the two gain controls.
Characteristics
Made from ABS plastic, with an internal zamak chassis which gives maximum shielding. The power supply unit is insulated from the rest of the high frequency circuit, complying with the safety regulations for the installer and the user. Fixed to the wall by means of the supplied screws and wall-plugs. F type connectors.
Downloads
Technical specification
Technical specification
Manuals
– pdf 198.58 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Technical specifications
-
Alcad AI-414 Indoor amp tv+if 4 outputs dc path
KSh14,822.00Add to cartAlcad AI-414 – Serie 904: Indoor amp tv+if 4 outputs dc path.
Broadband apartment amplifier for terrestrial and satellite TV for installation with multiswitches, with 4 inputs and built-in powern supply unit. It amplifies the terrestrial TV and IF satellite bands separately. It has an independent gain control for each band and a fixed slope on the FI band.
Applications
Designed to enlarge analogue and digital terrestrial and satellite TV installations within an apartment or house. It amplifies the terrestrial and satellite TV signals from the output of the multiswitch so a distribution with TV-SAT outlets can be made. The levels are easily adjusted by means of the two built-in gain controls.
Characteristics
Made from ABS plastic, with an internal zamak chassis which gives maximum shielding. The power supply unit is insulated from the rest of the high frequency circuit. Fixed to the wall by means of the supplied screws and wall-plugs. F type connectors.
Downloads
Technical specification
Technical specification
Manuals
– pdf 330.82 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Technical specifications
-
Alcad AL-100 Power supply 24 vdc 100 ma
KSh7,078.00Add to cartAlcad AL-100 – Serie 903: Power supply 24 vdc 100 ma.
Power supply units for mast amplifiers, 24 voltages. The power supply unit converts the mains supply into DC voltage and injects it into the coaxial cable to feed the amplifier. The signal coming from the antenna is distributed to its outputs. The power supply unit is available with two, four or five outputs. The power supply units are protected against overloads and short circuits. Available on request in 125 or 240 .
Applications
Individual digital and analogue terrestrial TV installations where mast amplifiers or antenna box preamplifiers are used. The feed voltage should be selected according to the amplifier installed.
Characteristics
Shielded zamak chassis, covered by an ABS plastic box for outdoor use. Power supply unit insulated from the high frequency circuit, complying with safety standards for both the installer and the user. Fixed to the wall by means of supplied wallplugs and screws. F type connectors. Supplied in individual or multiple packs.
Accessories
9120039 CM-004 Male F connector for ?6.6 mm coaxial cable 9080023 MC-302 Male F connector for ?7.0mm coaxial cable. 9120011 RS-275 Type F load of 75 ??. 9040078 DI-007 DIN rail adaptor
Downloads
Technical specification
Technical specification
Manuals
– pdf 130.03 KB
– pdf 178.25 KB
– pdf 141.19 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Certificates
CE_Declaration-TV_Systems_AL-BO pdf 34.29 KB
Technical specifications
-
Alcad AL-105 Power supply 12 vdc 100 ma
KSh6,226.00Add to cartAlcad AL-105 – Serie 903: Power supply 12 vdc 100 ma.
Power supply units for mast amplifiers, 12 voltages. The power supply unit converts the mains supply into DC voltage and injects it into the coaxial cable to feed the amplifier. The signal coming from the antenna is distributed to its outputs. The power supply units are protected against overloads and short circuits. Available on request in 125 or 240 .
Applications
Individual digital and analogue terrestrial TV installations where mast amplifiers or antenna box preamplifiers are used. The feed voltage should be selected according to the amplifier installed.
Characteristics
Shielded zamak chassis, covered by an ABS plastic box for outdoor use. Power supply unit insulated from the high frequency circuit, complying with safety standards for both the installer and the user. Fixed to the wall by means of supplied wallplugs and screws. F type connectors. Supplied in individual or multiple packs.
Accessories
9120039 CM-004 Male F connector for ?6.6 mm coaxial cable 9080023 MC-302 Male F connector for ?7.0mm coaxial cable. 9120011 RS-275 Type F load of 75 ??. 9040078 DI-007 DIN rail adaptor.
Downloads
Technical specification
Technical specification
Manuals
– pdf 178.25 KB
– pdf 173.26 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Certificates
CE_Declaration-TV_Systems_AL-BO pdf 34.29 KB
Technical specifications
-
Add to cartAlcad AL-110 – Serie 903: Power supply 24 vdc 100ma, 4 outputs.
Power supply units for mast amplifiers, 24 voltages. The power supply unit converts the mains supply into DC voltage and injects it into the coaxial cable to feed the amplifier. The signal coming from the antenna is distributed to its outputs. The power supply unit is available with two, four or five outputs. The power supply units are protected against overloads and short circuits. Available on request in 125 or 240
Applications
Individual digital and analogue terrestrial TV installations where mast amplifiers or antenna box preamplifiers are used. The feed voltage should be selected according to the amplifier installed. Characteristics Shielded zamak chassis, covered by an ABS plastic box for outdoor use. Power supply unit insulated from the high frequency circuit, complying with safety standards for both the installer and the user. Fixed to the wall by means of supplied wallplugs and screws. F type connectors. Supplied in individual or multiple packs.
Accessories
9120039 CM-004 Male F connector for ?6.6 mm coaxial cable 9080023 MC-302 Male F connector for ?7.0mm coaxial cable. 9120011 RS-275 Type F load of 75 ??. 9040078 DI-007 DIN rail adaptor
Downloads
Technical specification
Technical specification
Manuals
– pdf 178.25 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Technical specifications
-
Alcad AL-245 Power supply 12/13/18 vdc 400 ma
KSh7,402.00Add to cartAlcad AL-245 – Serie 903: Power supply 12/13/18 vdc 400 ma.
Power supply unit for mast amplifier with SAT multiplexing. Voltage supply 12Vdc. If LNB control signal is received it powers both the amplifier and the LNB with the control signal comming from the SAT receiver. The output voltage is injected into the coaxial cable to power the amplifier and the LNB. The signal coming from the antenna is distributed to its two outputs. Protected against overloads and short circuits.
Applications
Individual terrestrial ans satellite TV installations, digital and analogue, where mast amplifiers with SAT multiplexing are used.
Characteristics
Shielded zamak chassis, covered by an ABS plastic box. Power supply unit insulated from the high frequency circuit, complying with safety standards for both the installer and the user. Fixed to the wall by means of supplied wallplugs and screws. F type connectors.
Downloads
Technical specification
Technical specification
Manuals
AL-245 HN pdf 824.47 KB
AL-245 Manual pdf 991.42 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Certificates
CE Declaration – AL-245 pdf 71 KB
Technical specifications
-
Add to cartAlcad ALC-290 – Serie 962: Power supply 48v dc 65.3 va 100-240 vac.
Downloads
Technical specification
Technical specification
Catalogues
CATALOGUE_ALCAD_EN_DES pdf 5.85 MB
Certificates
DEC_ALC-290 pdf 92.93 KB
Technical specifications
-
Alcad AM-190 Amp uhf 20 db lte700 mast 24 vdc
KSh6,912.00Add to cartAlcad AM-190 – Serie 903: Amp uhf 20 db lte700 mast 24 vdc.
Broadband amplifiers for masts, compatible with LTE700 and LTE800 mobile telephone signals with amplification band in UHF 470-694 MHz. They have one input to amplify and combine the signals from the antennas. They are fed through the coaxial cable from a power supply unit installed inside the building. They incorporate a switchable DC path, allowing power to be supplied to a preamplifier.
Applications
Individual digital and analogue terrestrial TV installations which are affected by the transmission of LTE700 and LTE800 mobile phone signals and which require low gain. They amplify and mix the signals from several antennas. The signal obtained can be distributed to a large number of TV outlets by means of a single coaxial cable.
Characteristics
Shielded zamak chassis, covered by a weather-resistant plastic casing. Easy to open and close, the chassis can be tilted to facilitate manipulation. It can be installed either on a mast, by means of a polyamide clamp, or on a wall. Resistant to sun and water (IP53). Greater insulation between inputs and outputs. F-type connectors for screwing or crimping.
Accessories
9030086 AL-100 24 power supply unit. 9120039 CM-004 Male F connector for ?6.6 mm coaxial. 9080023 MC-302 Male F connector for RG-6 coaxial, ?7.0 mm. 9080030 MC-304 Male compression F connector for RG-6 coaxial, ?7.0 mm
Downloads
Technical specification
Technical specification
Manuals
Manual pdf 251.86 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Certificates
CE_Declaration-TV_Systems pdf 65.95 KB
-
Alcad AM-195 Amp uhf 32 db lte700 mast 24 vdc
KSh7,648.00Add to cartAlcad AM-195 – Serie 903: Amp uhf 32 db lte700 mast 24 vdc.
Broadband amplifiers for masts, compatible with LTE700 mobile telephone signals with amplification band in UHF 470-694 MHz. They have one input to amplify and combine the signals from the antennas. They are fed through the coaxial cable from a power supply unit installed inside the building. They incorporate a switchable DC path, allowing power to be supplied to a preamplifier.
Applications
Individual digital and analogue terrestrial TV installations which are affected by the transmission of LTE700 mobile phone signals and which require low gain. They amplify and mix the signals from several antennas. The signal obtained can be distributed to a large number of TV outlets by means of a single coaxial cable.
Characteristics
Shielded zamak chassis, covered by a weather-resistant plastic casing. Easy to open and close, the chassis can be tilted to facilitate manipulation. It can be installed either on a mast, by means of a polyamide clamp, or on a wall. Resistant to sun and water (IP53). Greater insulation between inputs and outputs. F-type connectors for screwing or crimping.
Accessories
9030086 AL-100 24 power supply unit. 9120039 CM-004 Male F connector for ?6.6 mm coaxial. 9080023 MC-302 Male F connector for RG-6 coaxial, ?7.0 mm. 9080030 MC-304 Male compression F connector for RG-6 coaxial, ?7.0 mm
Downloads
Technical specification
Technical specification
Manuals
Manual pdf 251.86 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Certificates
CE_Declaration-TV_Systems pdf 65.95 KB
Technical specifications
-
Add to cartAlcad AM-292 – Serie 903: Amp uhf-dab/fm 20 db lte700 mast 24 vdc.
Broadband amplifiers for masts, compatible with LTE700 and LTE800 mobile telephone signals with amplification band in UHF 470-694 MHz. They have two inputs to amplify and combine the signals from the antennas. They are fed through the coaxial cable from a power supply unit installed inside the building. They incorporate a switchable DC path, allowing power to be supplied to a preamplifier.
Applications
Individual digital and analogue terrestrial TV installations which are affected by the transmission of LTE700 and LTE800 mobile phone signals and which require low gain. They amplify and mix the signals from several antennas. The signal obtained can be distributed to a large number of TV outlets by means of a single coaxial cable.
Characteristics
Shielded zamak chassis, covered by a weather-resistant plastic casing. Easy to open and close, the chassis can be tilted to facilitate manipulation. It can be installed either on a mast, by means of a polyamide clamp, or on a wall. Resistant to sun and water (IP53). Greater insulation between inputs and outputs. F-type connectors for screwing or crimping.
Accessories
9030086 AL-100 24 power supply unit. 9120039 CM-004 Male F connector for ?6.6 mm coaxial. 9080023 MC-302 Male F connector for RG-6 coaxial, ?7.0 mm. 9080030 MC-304 Male compression F connector for RG-6 coaxial, ?7.0 mm. CODE 9030165 9030166 9030172
Downloads
Technical specification
Technical specification
Manuals
Manual pdf 251.86 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Certificates
CE_Declaration-TV_Systems pdf 65.95 KB
-
Add to cartAlcad AM-296 – Serie 903: Amp uhf-dab/fm 32 db lte700 mast 24 vdc.
Broadband amplifiers for masts, compatible with LTE700 and LTE800 mobile telephone signals with amplification band in UHF 470-694 MHz. They have three inputs to amplify and combine the signals from the antennas. They are fed through the coaxial cable from a power supply unit installed inside the building. They incorporate a switchable DC path, allowing power to be supplied to a preamplifier.
Applications
Individual digital and analogue terrestrial TV installations which are affected by the transmission of LTE700 and LTE800 mobile phone signals and which require high gain. They amplify and mix the signals from several antennas. The signal obtained can be distributed to a large number of TV outlets by means of a single coaxial cable.
Characteristics
Shielded zamak chassis, covered by a weather-resistant plastic casing. Easy to open and close, the chassis can be tilted to facilitate manipulation. It can be installed either on a mast, by means of a polyamide clamp, or on a wall. Resistant to sun and water (IP53). Greater insulation between inputs and outputs. F-type connectors for screwing or crimping.
Accessories
9030086 AL-100 +24 power supply unit. 9120039 CM-004 Male F connector for ?6.6 mm coaxial. 9080023 MC-302 Male F connector for RG-6 coaxial, ?7.0 mm. 9080030 MC-304 Male compression F connector for RG-6 coaxial ?7.0 mm.
Downloads
Technical specification
Technical specification
Manuals
Manual pdf 251.86 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Certificates
CE_Declaration-TV_Systems pdf 65.95 KB
Technical specifications
-
Alcad AM-309 Amp groups uhf-uhf-vhf/fm mast
KSh12,274.00Add to cartAlcad AM-309 – Serie 903: Amp groups uhf-uhf-vhf/fm mast.
Configurable amplifiers for masts. The UHF inputs can be configured by adding low pass, high pass, band pass, monochannel, band rejection and channel rejection filters. The filters are installed during the factory manufacturing process and cannot be readjusted by the user. The attenuator located at each input makes it possible to control the gain to obtain an output with all the bands equalised.
Applications
Individual digital and analogue terrestrial TV installations which require an amplifier adapted to the specific needs of the area. The interference from undesired channels can be avoided through the use of the built-in filters. The type of filter and the initial and final channels should be specified in the order.
Characteristics
Shielded zamak chassis, covered by an ABS plastic box for outdoor use. Fixed to the mast by means of a polyamide clamp. F-type connectors.
Accessories
9030086 AL-100 +24 power supply unit. 9120039 CM-004 Male F connector for ?6.6 mm coaxial. 9080023 MC-302 Male F connector for RG-6 coaxial, ?7.0 mm.
Downloads
Technical specification
Technical specification
Manuals
– pdf 156.97 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
-
Alcad AM-396 Amp uhf-uhf-dab/fm 32 db lte700 mast
KSh11,020.00Add to cartAlcad AM-396 – Serie 903: Amp uhf-uhf-dab/fm 32 db lte700 mast.
Broadband amplifiers for masts, compatible with LTE800 and LTE700 mobile signals (UHF amplification in the 470-694 MHz band). They have three inputs to amplify and combine the signals from the antennas. They are fed through the coaxial cable from a power supply unit installed inside the building. They incorporate a switchable DC path, allowing power to be supplied to a preamplifier.
Applications
Individual digital and analogue terrestrial TV installations which are affected by the transmission of LTE mobile phone signals and which require high gain. They amplify and mix the signals from several antennas. The signal obtained can be distributed to a large number of TV outlets by means of a single coaxial cable.
Characteristics
Shielded zamak chassis, covered by a weather-resistant plastic casing. Easy to open and close, the chassis can be tilted to facilitate manipulation. It can be installed either on a mast, by means of a polyamide clamp, or on a wall. Resistant to sun and water (IP53). Greater insulation between inputs and outputs. F-type connectors for screwing or crimping.
Accessories
9030086 AL-100 +24 power supply unit. 9120039 CM-004 Male F connector for ?6.6 mm coaxial. 9080023 MC-302 Male F connector for RG-6 coaxial, ?7.0 mm. 9080030 MC-304 Male compression F connector for RG-6 coaxial ?7.0 mm.
Downloads
Technical specification
Technical specification
Manuals
Manual pdf 251.86 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Certificates
CE_Declaration-TV_Systems pdf 65.95 KB
Technical specifications
-
Add to cartAlcad AM-397 – Serie 903: Amp uhf-biii/dab-fm 32 db lte700 24 vdc.
Broadband amplifiers for masts, compatible with LTE700 and LTE800 mobile telephone signals with amplification band in UHF 470-694 MHz. They have three inputs to amplify and combine the signals from the antennas. They are fed through the coaxial cable from a power supply unit installed inside the building. They incorporate a switchable DC path, allowing power to be supplied to a preamplifier.
Applications
Individual digital and analogue terrestrial TV installations which are affected by the transmission of LTE700 and LTE800 mobile phone signals and which require high gain. They amplify and mix the signals from several antennas. The signal obtained can be distributed to a large number of TV outlets by means of a single coaxial cable.
Characteristics
Shielded zamak chassis, covered by a weather-resistant plastic casing. Easy to open and close, the chassis can be tilted to facilitate manipulation. It can be installed either on a mast, by means of a polyamide clamp, or on a wall. Resistant to sun and water (IP53). Greater insulation between inputs and outputs. F-type connectors for screwing or crimping.
Accessories
9030086 AL-100 +24 power supply unit. 9120039 CM-004 Male F connector for ?6.6 mm coaxial. 9080023 MC-302 Male F connector for RG-6 coaxial, ?7.0 mm. 9080030 MC-304 Male compression F connector for RG-6 coaxial ?7.0 mm.
Downloads
Technical specification
Technical specification
Manuals
Manual pdf 232.44 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Certificates
DEC_AM_LTE700 pdf 65.95 KB
-
Add to cartAlcad AM-497 – Serie 903: Amp uhf-uhf-biii/dab-fm 32 db lte700 24v.
Broadband amplifiers for masts, compatible with LTE700 and LTE800 mobile telephone signals with amplification band in UHF 470-694 MHz. They have four inputs to amplify and combine the signals from the antennas. They are fed through the coaxial cable from a power supply unit installed inside the building. They incorporate a switchable DC path, allowing power to be supplied to a preamplifier.
Applications
Individual digital and analogue terrestrial TV installations which are affected by the transmission of LTE700 and LTE800 mobile phone signals and which require high gain. They amplify and mix the signals from several antennas. The signal obtained can be distributed to a large number of TV outlets by means of a single coaxial cable.
Characteristics
Shielded zamak chassis, covered by a weather-resistant plastic casing. Easy to open and close, the chassis can be tilted to facilitate manipulation. It can be installed either on a mast, by means of a polyamide clamp, or on a wall. Resistant to sun and water (IP53). Greater insulation between inputs and outputs. F-type connectors for screwing or crimping.
Accessories
9030086 AL-100 +24 power supply unit. 9120039 CM-004 Male F connector for ?6.6 mm coaxial. 9080023 MC-302 Male F connector for RG-6 coaxial, ?7.0 mm. 9080030 MC-304 Male compression F connector for RG-6 coaxial ?7.0 mm.
Downloads
Technical specification
Technical specification
Manuals
Manual pdf 368.98 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
-
Alcad AM-696 Amp sat-uhf-dab/fm 32 db mat
KSh10,596.00Add to cartAlcad AM-696 – Serie 903: Amp sat-uhf-dab/fm 32 db mat.
Broadband amplifiers for masts, amplifies the signal from terrestrial antennas and multiplexes the satellite signal. Powered through the coaxial cable from a power supply unit installed inside the building. The LNB is controlled by the control signal comming from the satellite set-top-box. It incorporates a switchable DC path, allowing power to be supplied to an antenna preamplifier. Compatible with LTE700 and LTE800 mobile telephone signals. UHF Amplification band 470-694 MHz.
Applications
Individual terrestrial and satellite TV installations, digital and analogue. It amplifes the signal from two terrestrial antennas and combines the signals along with the satellite signal. The signal obtained can be distributed to a large number of TV outlets by means of a single coaxial cable.
Characteristics
Shielded zamak chassis, with a weather-resistant plastic casing. Easy to open and close, the chassis can be tilted to facilitate manipulation. It can be installed either on a mast, by means of a polyamide zip tie, or on a wall. Resistant to sun and water (IP53). F-type compression or screwing connectors.
Downloads
Technical specification
Technical specification
Manuals
AM-696 HN pdf 824.47 KB
AM-696 Manual pdf 991.42 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Certificates
CE Declaration – AM-696 pdf 71 KB
Technical specifications
-
Alcad AM-915 Amp uhf-dab 40 db lte700 mast
KSh7,800.00Add to cartAlcad AM-915 – Serie 903: Amp uhf-dab 40 db lte700 mast.
Broadband amplifiers for masts, compatible with LTE800 and LTE700 mobile signals (UHF amplification in the 470-694 MHz band). They have two inputs to amplify and combine the signals from the antennas. They have two outputs. They are fed through the coaxial cable from a power supply unit installed inside the building. They incorporate a switchable DC path, allowing power to be supplied to a preamplifier.
Applications
Individual digital and analogue terrestrial TV installations which are affected by the transmission of LTE mobile phone signals and which require very high gain. They amplify and mix the signals from several antennas. The signal obtained can be distributed to a large number of TV outlets by means of a single coaxial cable.
Characteristics
Shielded zamak chassis, covered by a weather-resistant plastic casing. Easy to open and close, the chassis can be tilted to facilitate manipulation. It can be installed either on a mast, by means of a polyamide clamp, or on a wall. Resistant to sun and water (IP53). Greater insulation between inputs and outputs. F-type connectors for screwing or crimping.
Accessories
9030086 AL-100 +24 power supply unit. 9120039 CM-004 Male F connector for ?6.6 mm coaxial. 9080023 MC-302 Male F connector for RG-6 coaxial, ?7.0 mm. 9080030 MC-304 Male compression F connector for RG-6 coaxial ?7.0 mm.
Downloads
Technical specification
Technical specification
Manuals
Manual pdf 299.28 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Certificates
CE_Declaration-TV_Systems pdf 65.95 KB
Technical specifications
-
Alcad AS-125 Power supply 24 vdc 1.7 a (230/240 vac)
KSh20,244.00Add to cartAlcad AS-125 – Serie 905: Power supply 24 vdc 1.7 a (230/240 vac).
Compact switching power supply units which permits the installation of up to 18 modules on the support frame.
Applications
Necessary to supply the amplification modules of the equipment. The number of modules which it can feed varies according to the consumption of the modules and of the consumption of the LNBs in the case of SAT amplifier modules.18 modules can be fed in the case of monochannel amplifiers.
Characteristics
Protected against overloads and short-circuits. Made from an aluminium profile and alvanised plate. It includes a protection fuse which the installer can access. Supplied with power cable with faston connector for IEC connector equipment.
Downloads
Technical specification
Technical specification
Manuals
– pdf 165.67 KB
– pdf 165.54 KB
– pdf 624.67 KB
– pdf 204.95 KB
– pdf 393.23 KB
– pdf 201.67 KB
– pdf 201.66 KB
– pdf 327.17 KB
– pdf 515.52 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Technical specifications
-
Alcad AU-620 Amplifier multiswitch 4 inputs
KSh39,122.00Add to cartAlcad AU-620 – Serie 913: Amplifier multiswitch 4 inputs.
SAT amplifier for 4, 8 or 16 polarities, for installations in cascade. For 16 polarities, two stacked amplifiers of 8 polarities are installed. Equipped with gain control and independent equaliser for each polarity. Requires the FU-513 power supply unit, from the NET power supply connector, to feed the amplifier and intermediate active multiswitches. To power the LNB, the FU-612 power supply unit is used.
Applications
Medium-sized to large MATV and SMATV installations. Enables distribution to up to 128 TV outlets in a single line, with a single amplifier and FU-513 power supply unit. By dividing the installation into lines of 128 outlets and distributing the 4 or 8 polarities and the terrestrial TV to all the lines, it is possible to reach more than 2,000 outlets. Amplifies and equalises all the polarities before the cascade of multiswitches.
Characteristics
Return path included from 5 to 65MHz. Shielded zamak chassis with plastic supports. F-type connectors. Two power supply jacks, 9.5mm x 2.1mm for the NET cascade and for the LNB.
Downloads
Technical specification
Technical specification
Manuals
AU-620 Manual pdf 796.9 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Certificates
CE_Declaration-TV_Distribution pdf 269.31 KB
Technical specifications
-
Alcad AU-621 Amplifier multiswitch 4 inputs 25 db
KSh37,218.00Add to cartAlcad AU-621 – Serie 913: Amplifier multiswitch 4 inputs 25 db.
SAT amplifier for 4, 8 or 16 polarities, for installations in cascade. For 16 polarities, two stacked amplifiers of 8 polarities are installed. Equipped with gain control and independent equaliser for each polarity. Requires the FU-513 power supply unit, from the NET power supply connector, to feed the amplifier and intermediate active multiswitches. To power the LNB, the FU-612 power supply unit is used.
Applications
Medium-sized to large MATV and SMATV installations. Enables distribution to up to 128 TV outlets in a single line, with a single amplifier and FU-513 power supply unit. By dividing the installation into lines of 128 outlets and distributing the 4 or 8 polarities and the terrestrial TV to all the lines, it is possible to reach more than 2,000 outlets. Amplifies and equalises all the polarities before the cascade of multiswitches.
Characteristics
Return path included from 5 to 65MHz. Shielded zamak chassis with plastic supports. F-type connectors. Two power supply jacks, 9.5mm x 2.1mm for the NET cascade and for the LNB.
Downloads
Technical specification
Technical specification
Manuals
AU-621 Manual pdf 796.9 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Certificates
CE_Declaration-TV_Distribution pdf 269.31 KB
Technical specifications
-
Alcad AU-640 Amplifier multiswitch 8 inputs
KSh60,654.00Add to cartAlcad AU-640 – Serie 913: Amplifier multiswitch 8 inputs.
SAT amplifier for 4, 8 or 16 polarities, for installations in cascade. For 16 polarities, two stacked amplifiers of 8 polarities are installed. Equipped with gain control and independent equaliser for each polarity. Requires the FU-513 power supply unit, from the NET power supply connector, to feed the amplifier and intermediate active multiswitches. To power the LNB, the FU-612 power supply unit is used.
Applications
Medium-sized to large MATV and SMATV installations. Enables distribution to up to 128 TV outlets in a single line, with a single amplifier and FU-513 power supply unit. By dividing the installation into lines of 128 outlets and distributing the 4 or 8 polarities and the terrestrial TV to all the lines, it is possible to reach more than 2,000 outlets. Amplifies and equalises all the polarities before the cascade of multiswitches.
Characteristics
Return path included from 5 to 65MHz. Shielded zamak chassis with plastic supports. F-type connectors. Two power supply jacks, 9.5mm x 2.1mm for the NET cascade and for the LNB.
Downloads
Technical specification
Technical specification
Manuals
AU-640 Manual pdf 796.9 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Certificates
CE_Declaration-TV_Distribution pdf 269.31 KB
Technical specifications
-
Alcad AU-641 Amplifier multiswitch 8 inputs 25 db
KSh52,328.00Add to cartAlcad AU-641 – Serie 913: Amplifier multiswitch 8 inputs 25 db.
SAT amplifier for 4, 8 or 16 polarities, for installations in cascade. For 16 polarities, two stacked amplifiers of 8 polarities are installed. Equipped with gain control and independent equaliser for each polarity. Requires the FU-513 power supply unit, from the NET power supply connector, to feed the amplifier and intermediate active multiswitches. To power the LNB, the FU-612 power supply unit is used.
Applications
Medium-sized to large MATV and SMATV installations. Enables distribution to up to 128 TV outlets in a single line, with a single amplifier and FU-513 power supply unit. By dividing the installation into lines of 128 outlets and distributing the 4 or 8 polarities and the terrestrial TV to all the lines, it is possible to reach more than 2,000 outlets. Amplifies and equalises all the polarities before the cascade of multiswitches.
Characteristics
Return path included from 5 to 65MHz. Shielded zamak chassis with plastic supports. F-type connectors. Two power supply jacks, 9.5mm x 2.1mm for the NET cascade and for the LNB.
Downloads
Technical specification
Technical specification
Manuals
AU-641 Manual pdf 796.9 KB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Certificates
CE_Declaration-TV_Distribution pdf 269.31 KB
Technical specifications
-
Add to cartAlcad AV-305 – Serie 909: Variable attenuator 18 db (5-2400 mhz).
Fixed and variable attenuators for terrestrial and satellite TV. The variable attenuators are equipped with an attenuation control. Available in different attenuation and pass bands according to the model. All models have a constant impedance of 75.
Applications
Used to attenuate signals which are too wrong. Installed at the input of equipment when the antenna level is excessive, or at the output when the output level of the equipment is excessive. Installed at the output of an outlet with excess signal, permitting a reduction in the level of signal that the television receives.
Characteristics
Shielded zamak chassis, with female input and output F connectors.
Downloads
Technical specification
Technical specification
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Technical specifications
